Seed Oil Extraction Machine

Seed Oil Extraction Machine
Seed Oil Extraction Machine
Product Code : 55
Brand Name : spfoundries
Product Description

Being a quality centric firm, we have gained immense goodwill in this domain by providing Seed oil extraction machine. The offered machine is extensively demanded in food processing industry to extract oil from nuts, beans, line seed, cotton seed etc. This machine is manufactured by utilizing quality tested components and ultra-modern techniques. Furthermore, the offered Seed oil extraction machine is available for our clients in different technical specifications at affordable prices.



Features:

  • Rust proof body
  • Has a long functional life
  • Easy to install and requires no maintenance
  • Consumes less energy with optimum performance
  • Offers noiseless operation

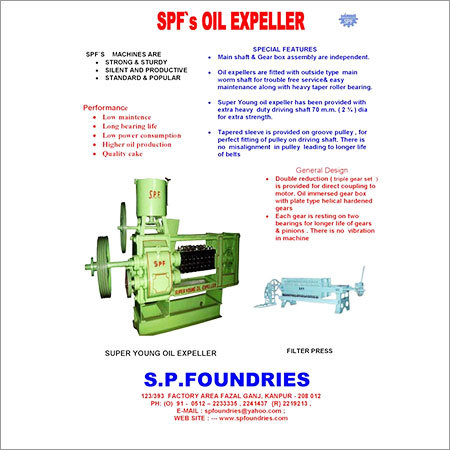

  • SPF's SUPER YOUNG OIL EXPELLER (Seed Oil Extraction Machine)

It is yet another achievement of the SPFs research and development division  to introduce SUPER YOUNG Oil expeller  to cater to the needs  of the  oil milling industry of the world . The deficiency of a medium  capacity combined with high yield oil expeller  was felt for a long time . The gap is very suitably filled now.

  • DESIGN : The design of this machine  is a real victory  for Indian engineers who are now all out to satisfy the global market . Main shaft and side shaft of the machine are manufactured from good quality steel to avoid breakage of shaft. Main gear and quill worm gear rest in  two ball bearings fitted in each housing .
  • GEAR BOX : A noiseless oil bath reduction helical gear box is provided within the machine. All Steel hobbbing cut gears are fitted for durability and high efficiency . The gears are manufactured from alloy steel  and machining is done on accurate hobbing machines to ensure free movement and longer life  of gears . This results in saving of  electric power consumption  adding  to direct profit  of oil millers.
  • BODIES : The unique feature  is that  main body  ( combined Body no.1 & 2 , gear body )  is made in single part  to ensure leak proof gear box . The body and side brackets are  accurately machined  on boring machines leading to perfect alignment of shaft.
  • OUTPUT : The capacity of the machine depends upon the oil seed to be crushed . the second factor  which particularly governs the capacity  is wether  the oil expeller is used for  first or  intermediate  or final crushing.
  • KETTLE : Oil expeller  is supplied with  wider round feed box .
  • BED : Bodies rest on bed in a manner  to give higher contact area  and no vibrations. Built in raw  ( kutcha) oil tank  is provided in bed itself.

SPECIFICATIONS

Model

Name

Chamber

Size

No. of

Gears

Length*



Breadth*

Height*

Weight

Dia of

Driving

Pulley

HP

Required

   Super Young  Oil

  Expeller



27

( 686 mm X 127 mm  )

Triple Gear



2744mm

( 9 )

915mm

( 3)

1880mm

( 6 )

2

M.Tons

610mm

( 24 )

15 to 20

Super Young Oil

Expeller



30 X 5.5

(762 mm X140 mm )

Triple Gear

2820mm

(9)

915mm

(3)

1880mm

(6)

2.1 M.Tons

610mm

(24)

20 to 25

Note :        In view of constant improvement in design , the above specifications are  subject to change  without notice.

* Length X Breadth X Height are with round feed box .
